Intelligent Interactive Graphical Interface® (i2Gi®)

The Intelligent Interactive Graphical Interface^® (i₂Gi^®) is a sophisticated software tool that supports advanced wire bond control through an intuitive interface. It simplifies programming and provides real-time graphical feedback to the user of bonding performance. i₂Gi was designed to enable operating technicians to work smarter, faster, and with more control. Bonder program developers and operators experience real-time bonding and part quality validation.

Category

Wire Bond Features

Processes

Wedge Bonding, Gold Wire Bonding, Aluminum Wire Bonding, Ball Bumping

Applications

Large complex hybrids
HB/HP LED arrays
Optoelectronic packaging
Chip-on-board (COB)
System in packages (SiPs)
Specialty lead frames
Automotive assemblies
Flex circuits
Multi-chip modules (MCMs)
Fine pitch devices
LEDs with running stitch

Intelligent Interactive Graphical Interface (i2Gi)

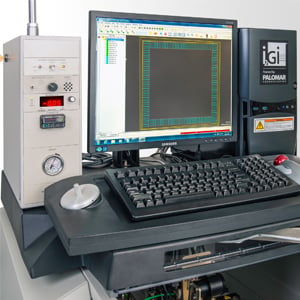

All-in-One Package

Management tools for modern wire and wedge bonding, from part design and development, to process validation, and finally intuitive operations control to support automated complex microelectronics packaging and production.

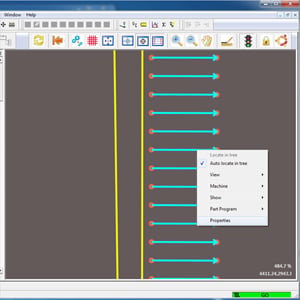

Part Tree Display

Part Tree Display (PTD) offers a familiar hierarchical tree infrastructure with parent-child relationships between part elements for quick referencing of part design or program run progress. Intuitive wizards are included to simplify calibration, setup, and programming.

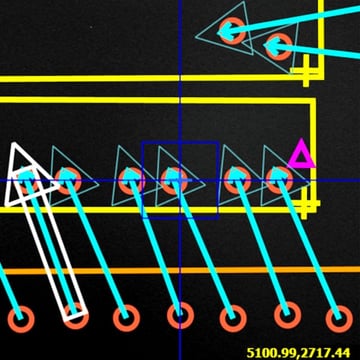

Part Graphical Display

Part Graphical Display (PGD) offers a 2D view with a “you are here” aspect. It provides an accurate graphical representation of the complete design blueprint with real-time updates during the program run.

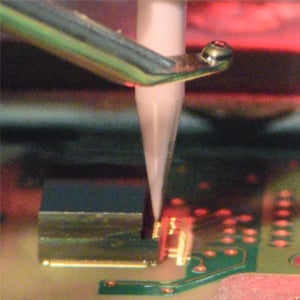

Real Time Vision System Correlation

MMI with Video Graphical Display (VGD) offers a man-machine interface (MMI) with live video with the Cognex® Vision System. VGD provides a live, connected view between PTD and PGD while supporting the creation and placement accuracy validation.
