Back-end manufacturing in micro-optoelectronics, though representing only ~10% of the total investment to bring a product to market, is a critical phase where missteps can derail timelines
and inflate costs. While front-end processes like wafer fabrication command the lion's share of resources, the complexity of back-end assembly—particularly die bonding and wire bonding—demands specialized expertise to achieve high yields, especially for high-reliability, mixed-technology, and low-to-medium volume products. This article explores common pain points in back-end assembly and outlines actionable strategies to navigate them, with a focus on die bond and wire bond processes.
Common Pain Points
- Inflexible Equipment for Specialized Applications
Modern back-end equipment, such as die bonders and wire bonders, has evolved to deliver exceptional precision and throughput. However, this specialization often comes at the cost of adaptability. Equipment optimized for high-volume, low-complexity products struggles with the nuanced requirements of high-reliability, mixed-technology assemblies. For instance, die bonders designed for standard epoxy dispensing may lack the flexibility to handle advanced techniques like eutectic soldering, thermocompression or sintering, which are critical for complex packages. This rigidity poses significant challenges for low-to-medium volume products where customization is paramount.
- Limitations in Mixed-Technology Assembly
Mixed-technology applications—those requiring a combination of die attach methods (e.g., epoxy, solder reflow, sintering, or thermocompression) and wire bonding (e.g., ball bonding or wedge bonding)—are increasingly common in high-value micro-optoelectronics. Most back-end equipment is engineered for single-purpose, high-speed operations, making it ill-suited for integrating multiple bonding techniques within a single package. For example, a die bonder optimized for epoxy dispensing may not accommodate the precise thermal profiles needed for solder reflow, leading to process incompatibilities and reduced yields.
- Equipment Without Process Expertise

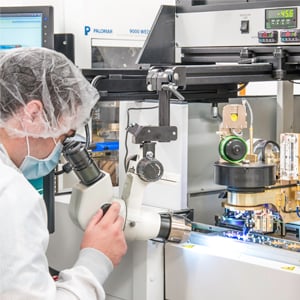

Advanced back-end equipment, such as automated wire bonders or die attach systems, is only as effective as the process driving it. Equipment suppliers often focus on hardware performance, leaving process development to end-users or outsourced assembly and test (OSAT) providers. However, even reputable OSATs may lack the holistic process expertise needed to address upstream and downstream interactions. A real-world example illustrates this: a customer approached Palomar Technologies with a wire bonding issue on a flexible substrate, where the wire bonds failed to adhere despite six weeks of troubleshooting by a high-volume OSAT. The OSAT attempted plasma cleaning, tooling adjustments, and clamping modifications, yet the issue persisted, delaying time-to-market and increasing costs. Palomar’s process engineers identified the root cause within minutes: poor die attach quality, which compromised the wire bonding process. By re-executing the die attach with optimized parameters and then completing the wire bonding, Palomar resolved the issue in under a week at our Advanced Solutions Lab. This underscores the necessity of integrated process expertise in die and wire bonding.
- Low Yields in High-Value Packages
For high-value, high-reliability packages, achieving a high-yield process is non-negotiable. Developing such processes typically takes 9–12 months, consuming costly materials and driving up development expenses. Factors like suboptimal die attach (e.g., inconsistent epoxy dispensing or inadequate thermal management) or wire bonding (e.g., improper bond force or ultrasonic energy) can lead to defects such as delamination, wire lift-off, or cratering. If design iterations or material changes are required, this timeline can extend further, exacerbating cash burn. Rapid process optimization, grounded in deep technical expertise, is critical to minimizing these risks.
Strategies for Navigating Back-End Assembly Challenges
To overcome these pain points and achieve robust, high-yield back-end processes for complex, mixed-technology micro-optoelectronics, consider the following steps:
- Partner with Vendors Offering Dual Expertise in Equipment and Process Design
Select a vendor with proven proficiency in both bonding equipment and process development. For die bonding, this means expertise in techniques like epoxy dispensing, eutectic reflow, thermocompression, and sintering. For wire bonding, look for capabilities in ball bonding, fine wire wedge bonding, and ribbon bonding, with a track record of optimizing parameters like bond force, ultrasonic energy, and loop profiles. - Leverage Multi-Process Bonding Automation
Choose equipment capable of supporting multiple bonding techniques within a single platform. For example, a die bonder that can seamlessly switch between epoxy and solder reflow or a wire bonder that handles both gold and aluminum wires ensures flexibility for mixed-technology assemblies. - Prioritize Knowledge of Upstream and Downstream Interactions
Work with a team that understands the cause-and-effect relationships across the assembly process. For instance, die attach quality (e.g., die tilt, voiding, or thermal mismatch) directly impacts wire bond reliability. A vendor with comprehensive process knowledge can anticipate and mitigate these interactions. - Enable Rapid Bonding Parameter Optimization
Select a partner capable of quickly iterating on process parameters, such as die attach curing profiles or wire bond ultrasonic settings, to achieve optimal results. Advanced simulation tools and in-house testing facilities, like Palomar’s Advanced Solutions Lab, can accelerate this process. - Invest in Process Analysis and Refinement
Continuous process monitoring and refinement are essential for sustaining high yields. Techniques like shear testing for die bonds or pull testing for wire bonds can identify weaknesses early, enabling data-driven adjustments to improve reliability and throughput.
Conclusion
Back-end manufacturing for micro-optoelectronics, particularly die bonding and wire bonding, is fraught with challenges that can jeopardize product success. By partnering with a vendor like Palomar Technologies, who combines cutting-edge equipment with deep process expertise, manufacturers can navigate these complexities, achieve high yields, and accelerate time-to-market. For high-reliability, mixed-technology applications, the right expertise is not just an advantage—it’s a necessity.
