9000 Wedge Bonder

9000 Wedge Bonder

The Palomar 9000 Wedge Bonder is a high-speed fine wire wedge and ribbon bonder driven by voice coil technology in the bond head. This machine has interchangeable 45-60° and 90° deep access wedge clamps and operates across a single large 304 x 152 mm work area. As the entire bond head mechanism rides on theta, users realize excellent wire tension, a shorter wire feed path and inherent prevention of twisting of wire and ribbon, and better overall process control.

Category
Palomar Wire & Wedge Bonders
Applications
  • RF-SOE
  • Disk drives
  • Large complex hybrids
  • COB
  • RF and microwave devices
  • Compact hybrids
  • Fine pitch devices
  • Low profile wire bonds
  • Ribbon bonding
  • MCM power connections
  • Running stitch interconnects (die-to-die)
  • High frequency passive and active components
9000 Operator Microscope View

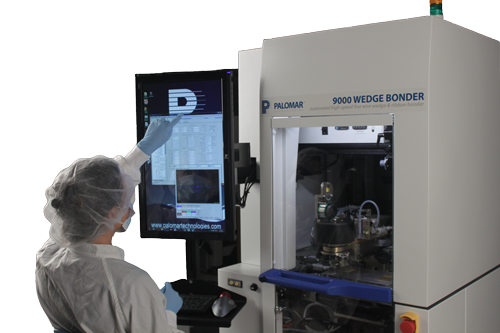

9000 Operator Touch Screen Interface
9000 Bond Head View
9000 Interior
9000 Compact Conveyor Option
9000 Wedge Bonder front
9000 Wedge Bonder

VisionPilot® with Vision Standardization

Utilizes advanced geometric pattern matching technology to reliably and accurately locate parts that are randomly oriented or have greyscale variations by using a set of boundary curves that are not tied to a traditional pixel-grid. Vision Standardization ensure consistency across systems and throughout the lifetime of the machine; reducing process maintenance and maximizing production.

Bond Data Miner

A comprehensive and centralized data management and analysis system that provides machine and process trend monitoring, storage and traceability of data across platforms, and closed loop process control for increased yields and predictive maintenance.

Automated Handler System

Automated inline handlers and conveyor systems to seamlessly bring parts in and out of the workspace. Custom designed for all process to fit all components and even apply heat for bot die and wire applications. Built with integration in mind for fully automatic assembly lines that can include all of our bonders.

Intelligent Interactive Graphical Interface® - i2Gi®

Supports advanced wire bond control through an intuitive interface that simplifies programming and provides real time graphical feedback to the user of bonding performance. Allows for a connected view with the ability to overlay 1:1 scaled graphics on top of live video of actual part.

Process Viewer

High resolution live video of the bonding process focused at the tooltip. Allows for easy viewing of loop formation and bonding with great detail. Video is available on the same monitor as program status and process feedback, keeping operator attention focused and centralized in one location.
