Royce Instruments’ bond testing systems can handle a variety of testing applications including wire bond loop pull testing, wire bond ball shear testing, BGA ball shear and pull testing, die bond shear testing, and high speed ball shear testing.

AP+: Automated Die Sorter

AutoPlacer MP300: Automatic Die Handling, Ejector & Sorting System

  • Fully automated pick-and place
  • Designed for automatic die sorting from wafer maps, including multi-project wafers (a.k.a. "pizza wafers")
  • User-friendly DieSort Manager software and expanded wafer map library



DE35-ST: Semi-Automatic Die Handling System

  • Supports up to 300mm die wafers
  • 700 to 1200 UPH (application dependent)
  • Output stage for waffle packs, Gel-Paks, film frames, etcetera

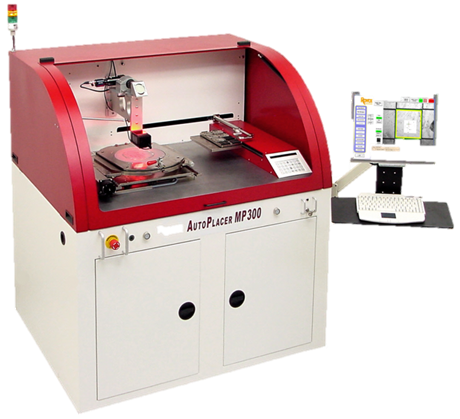

Royce AutoPlacer MP300

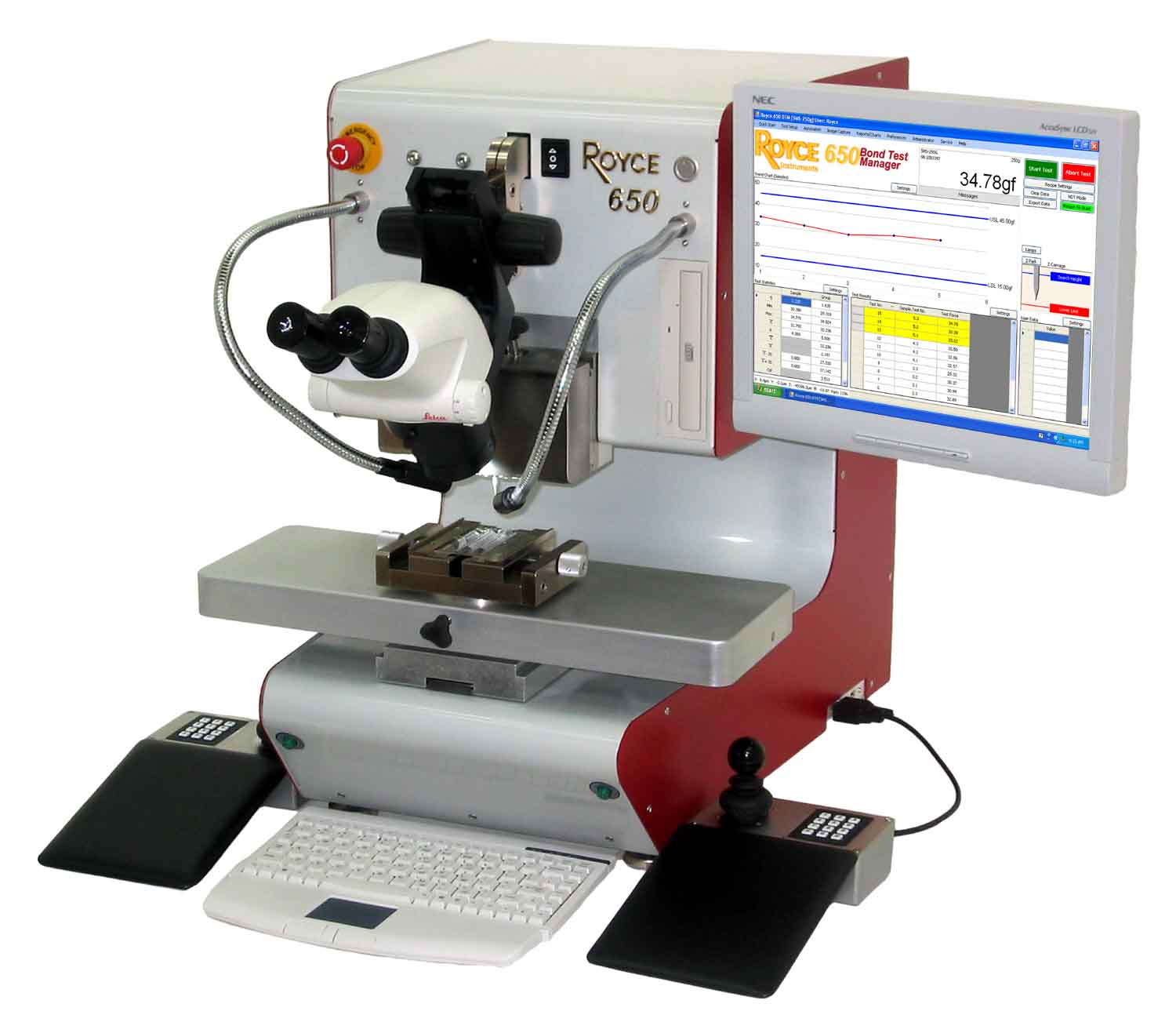

Royce 650 Universal Pull Tester

650 Universal Bond Tester

  • 305mm x 155mm stage for 300mm wafers, lead frames, or substrates
  • Ultra-fine pitch (UFP) capable
  • Ribbon bond testing for standard to high-power devices
  • Die shear up to 200 kgf
  • Robust test modules with range switching, on board calibration memory, and tool protection



620 Multi-test Bond Tester

  • Responsive joystick and manipulator: Z height positioning of the module (and tool rotation for wire pull testing), while the manual manipulator allows operator to control the XY and theta movements of the part
  • Compatibility with legacy systems

610 Dedicated Wire Pull Bond Tester

  • Data output to any PC using RS232
  • Ergonomic design
  • Simple calibration interface (NIST traceable calibration weights available)
  • Optional strip printer
  • Optional keypad for enhanced failure code input
  • Optional external Royce PC with Bond Test Manager software for data storage and networking
Royce 610 Wire Pull Bond Tester
