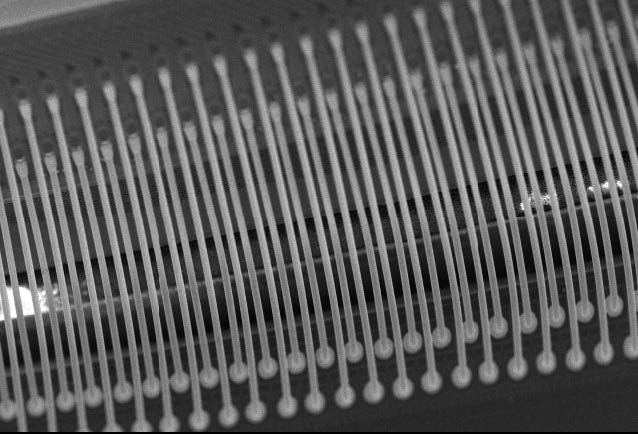

The Great Debate: Ball vs. Wedge

Download the Paper!

Over the years, microelectronic wire bond process and packaging engineers have debated whether to use ball or wedge bond technologies. This has been especially true with RF designs and fine-pitch packaging. There is little debate that ball bonding is faster and more robust; however, due to a need for low profile interconnects or fine pitch, wedge has continued to dominate key market segments. Another area where wedge bonding typically dominates is where a design requires a running stitch interconnect or die-to-die bonding. These demands have recently multiplied as advanced LED designs mature.

This paper will present several new techniques, such as chain bonding; a method developed to automatically bond running stitch interconnects using ball bond equipment. This technique controls interconnect geometries according to process parameter inputs supplied by the user. A stitch/ stitch interconnect allows the user to program low profile wires. Because there is no tail-off required, bond deformation is significantly reduced thus increasing destructive pull strength.
