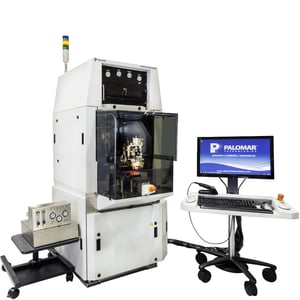

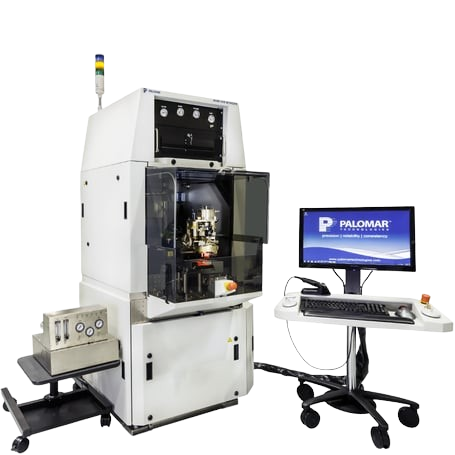

6500 Die Bonder

Download the Brochure!

The Palomar 6500 Die Bonder offers a balanced combination of accuracy, speed, and flexibility in a compact system footprint. The 6500 Die Bonder performs ultra-high accuracy eutectic and adhesive placements with cycle times under seven seconds using its four-axis positioning system driven by linear motors gliding over air bearings on a steel based frame.


  • P-side down laser diode attachment
  • Silicon bench (V-Groove) placement
  • High-density RF power transistors
  • Ultra-fine pitch hybrid assemblies
  • MEMS components
  • VCSEL modules
  • Data storage
  • High-bright/high-power LED arrays
  • Optoelectronic packaging
  • LED printhead attachment
  • Solar concentrator packaging
